[GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#1 Post by m1keY » 11 Feb 2020 22:25

PROLOGUE:
well sort of a guide...so I hope it fits the category ...
explained ALL over the forum in various threads by many others including me.... (I'm not the best teacher)


Basic knowledge - use of the NEW paintjobsystem (not that new ...but you get it...) AND additional to this
( requested by a few...in PM and other channels here and there )
HOW DO you skin Kast's Tandem ADDON :?: :?: :?:
******************************************************************************************************************************************************************************************************************************

To get it started:

ACCESSORIES AND HOW-TO GET THEM = ACC_LIST
how I learned it from this awesome thread by Mohegan13 viewtopic.php?f=37&t=247834
maybe slightly out-of-game-version, but you learn a lot by reading all these various threads and try it yourself
******************************************************************************************************************************************************************************************************************************
additional posts by me in the thread mentioned above, just a few more examples...same as given below read&learn
viewtopic.php?f=37&t=247834&start=510#p1074036
and another one, can't hurt to get it stuffed even more into your brain :D
viewtopic.php?f=37&t=251421#p960612

a short "tutorial" how-to get the acc_list from accessoryfolder
this is from basegame scania.r_2016
---------------------------------------------------------------------------
INFO EXTRACTION GAMEFILES
---------------------------------------------------------------------------
Nice tutorial on this forum....
and you can find more help in some other threads aswell
mentioned at the bottom of this post

viewtopic.php?f=172&t=190685
---------------------------------------------------------------------------

HERE WE GO
\base\def\vehicle\truck\scania.r_2016\accessory\f_wnd_frame this is the folder we're looking at
inside this folder there are 2 .sii files ; painted.sii AND stock.sii as seen, only one available for your skin is the painted.sii

so as you already should (hopefully) know the def\vehicle\truck\scania.r_2016\paint_job\accessory\**yourskin.sii**

have some filepaths to your textures with their acc_lists ...which with the example above should look like

Code: Select all

SiiNunit
{
simple_paint_job_data : .ovr1
{
	paint_job_mask: "/vehicle/truck/upgrade/paintjob/yourskin/accessories/some_texture.tobj"

	acc_list[]: "f_wnd_frame.painted"

}
}
f_wnd_frame.painted = name of the accessoryfolder
f_wnd_frame.painted = name of the actual part

this information is also seen inside the painted.sii the line at the top accessory_addon_data : painted.scania.r_2016.f_wnd_frame

Code: Select all

SiiNunit
{
accessory_addon_data : painted.scania.r_2016.f_wnd_frame
{
	name: "@@paint@@"
	price: 5300
	unlock: 0
	icon: "f_wnd_frame/scania_2016/painted"
	exterior_model: "/vehicle/truck/upgrade/f_wnd_frame/scania_2016/painted.pmd"
	exterior_model_uk: "/vehicle/truck/upgrade/f_wnd_frame/scania_2016/painted_uk.pmd"

}
}
******************************************************************************************************************************************************************************************************************************

This method above is what you do with every mod you have;
trucks/trailers/accessories and wish to add to your skinfile.sii to give it a proper look

if NOT you might end up with something like this.... oh, to familiar :lol: and if your skin have these minor issues, you have missed some stuff from the accessoryfolders...
you need some more acc_list items ...now go search for them :!: :!: :geek:

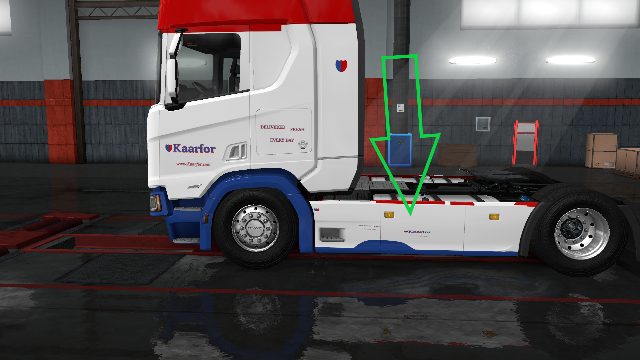

MISSING ACC_LIST PREVIEWIMAGES
those familiar screens...when everything is NOT OK :roll:
using the Kaarfor skin from Hounddogs excellent skinpackage for SCS Trucks as example - when using additional mods with new acc_list items

the main skin is showing up on the fenders, sunshield and the sideskirts :oops:





go through the accessoryfolder and every subdirectory and see what is needed for the actual skin, some parts you just don't need to add .... those "painted" parts is obviously good to get... ;)
******************************************************************************************************************************************************************************************************************************

With ALL this explained above... how do you skin the tandem stuff by Kast :?:
Well nothing magical about that either , if you checked ALL stuff above and do the same with Kast's tandem addon you can Do It :!: :!:
The tandem addon works for many truckmods (well those that requires his mod obviously, but they have the same stuff (acc_list) most of the time
just check the accessoryfolder for new stuff...add those lines to your skinfile.sii ... and you're ready to go :!:

This below another post by me taken from another thread, but to make it easier I include it here - for those who can't figure out how the searchbar works 8-)
viewtopic.php?f=35&t=277716&start=30#p1240617
I'm using the Scania 2016 RS ...but it could easily be for the other trucks using the mod...

******************************************************************************************************************************************************************************************************************************


lots of stuff to upgrade for the skins ... namechanges for boxes, additional new names for various accessories... but I see the setup is to make things easier to update in the future :D

Haven't done much more than edited the boxes in my first origin skinpackage... (still much more to do - rails, sideskirts and more new names = new acc_list)
What I've done is to first check the boxes - which names, what acc_list they belong to...what template ..well most of them use the same template even if there's a lot of them...it's up to you how to use them...
:P

Not sure how You do with stuff, but I want to be organized to easily upgrade stuff OR just make some new.....
If anyone is interested in this ... It's used for any truck that are using Kast's addon no matter what truck ...they still use the same boxes ( might be wrong - happened before ) :lol:
same acc_list = same template could be used ... however there are some small differences... depending on what type of skin you're making...really advanced could have some issues between the boxes as they have the same acc_list ;)
KAST NEW TANDEM ADDON TRUCK SETUPS


VAK ( 34 variants ) :

acc_list[]: "kuzov.vak_box4"

vak_box4.dry VAK Box 4m /DRY template: vak_box_4m.png
vak_box4.dry.8xx VAK Box 4m /DRY template: vak_box_4m.png

vak_box4.dry_clo VAK Box 4m /DRY template: vak_box_4_closed.png
vak_box4.dry_clo.8xx VAK Box 4m /DRY template: vak_box_4_closed.png

vak_box4.frc VAK Box 4m /FRC template: vak_box_4m.png
vak_box4.frc_s VAK Box 4m /FRC Side mounted template: vak_box_4m.png
vak_box4.frc.8xx VAK Box 4m /FRC template: vak_box_4m.png
vak_box4.frc_s.8xx VAK Box 4m /FRC Side mounted template: vak_box_4m.png

vak_box4.frc_s_clo VAK Box 4m /FRC Side mounted template: vak_box_4_closed.png
vak_box4.frc_clo VAK Box 4m /FRC template: vak_box_4_closed.png
vak_box4.frc_s_clo.8xx VAK Box 4m /FRC Side mounted template: vak_box_4_closed.png
vak_box4.frc_clo.8xx VAK Box 4m /FRC template: vak_box_4_closed.png

acc_list[]: "kuzov.vak_box4_4"

vak_box4_4.dry VAK Box 4.4m /DRY template: vak_box_4_4.png
vak_box4_4.dry.8xx VAK Box 4.4m /DRY template: vak_box_4_4.png

vak_box4_4.dry_clo VAK Box 4.4m /DRY template: vak_box_4_4_closed.png
vak_box4_4.dry_clo.8xx VAK Box 4.4m /DRY template: vak_box_4_4_closed.png

vak_box4_4.frc VAK Box 4.4m /FRC template: vak_box_4_4c.png
vak_box4_4.frc_2 VAK Box 4.4m /FRC template: vak_box_4_4c.png
vak_box4_4.frc_s VAK Box 4.4m /FRC Side mounted template: vak_box_4_4c.png
vak_box4_4.frc_s.8xx VAK Box 4.4m /FRC Side mounted template: vak_box_4_4c.png
vak_box4_4.frc_2.8xx VAK Box 4.4m /FRC template: vak_box_4_4c.png
vak_box4_4.frc.8xx VAK Box 4.4m /FRC template: vak_box_4_4c.png

vak_box4_4.frc_clo VAK Box 4.4m /FRC template: vak_box_4_4_closed_c.png
vak_box4_4.frc_s_clo VAK Box 4.4m /FRC Side mounted template: vak_box_4_4_closed_c.png
vak_box4_4.frc_2_clo VAK Box 4.4m /FRC template: vak_box_4_4_closed_c.png
vak_box4_4.frc_s_clo.8xx VAK Box 4.4m /FRC Side mounted template: vak_box_4_4_closed_c.png
vak_box4_4.frc_2_clo.8xx VAK Box 4.4m /FRC template: vak_box_4_4_closed_c.png
vak_box4_4.frc_clo.8xx VAK Box 4.4m /FRC template: vak_box_4_4_closed_c.png

acc_list[]: "kuzov.vak_box4_5"

vak_box4_5.dry VAK Box 4.5m /DRY template: vak_box_4_5.png
vak_box4_5.dry.8xx VAK Box 4.5m /DRY template: vak_box_4_5.png

vak_box4_5.frc VAK Box 4.5m /FRC template: vak_box_4_5_c.png
vak_box4_5.frc.8xx VAK Box 4.5m /FRC template: vak_box_4_5_c.png
vak_box4_5.frc_s VAK Box 4.5m /FRC Side mounted template: vak_box_4_5_c.png
vak_box4_5.frc_s.8xx VAK Box 4.5m /FRC Side mounted template: vak_box_4_5_c.png





NTM ( 28 variants ):


acc_list[]: "kuzov.ntm_box4"

ntm_box4.dry NTM Box 4m /DRY template: ntm_box_4.png
ntm_box4.dry.8xx NTM Box 4m /DRY template: ntm_box_4.png

ntm_box4.dry_clo NTM Box 4m /DRY template: ntm_box_4_closed.png
ntm_box4.dry_clo.8xx NTM Box 4m /DRY template: ntm_box_4_closed.png

ntm_box4.frc_s NTM Box 4m /FRC Side mounted template: ntm_box_4_c.png
ntm_box4.frc NTM Box 4m /FRC template: ntm_box_4_c.png
ntm_box4.frc_s.8xx NTM Box 4m /FRC Side mounted template: ntm_box_4_c.png
ntm_box4.frc.8xx NTM Box 4m /FRC template: ntm_box_4_c.png

ntm_box4.frc_s_clo NTM Box 4m /FRC Side mounted template: ntm_box_4_closed_c.png
ntm_box4.frc_clo NTM Box 4m /FRC template: ntm_box_4_closed_c.png
ntm_box4.frc_s_clo.8xx NTM Box 4m /FRC Side mounted template: ntm_box_4_closed_c.png
ntm_box4.frc_clo.8xx NTM Box 4m /FRC template: ntm_box_4_closed_c.png

acc_list[]: "kuzov.ntm_box4_4"

ntm_box4_4.dry NTM Box 4.4m /DRY template: ntm_box_4_4.png
ntm_box4_4.dry.8xx NTM Box 4.4m /DRY template: ntm_box_4_4.png

ntm_box4_4.dry_clo NTM Box 4.4m /DRY template: ntm_box_4_4_closed.png
ntm_box4_4.dry_clo.8xx NTM Box 4.4m /DRY template: ntm_box_4_4_closed.png

ntm_box4_4.frc_s NTM Box 4.4m /FRC Side mounted template: ntm_box_4_4_c.png
ntm_box4_4.frc_2 NTM Box 4.4m /FRC template: ntm_box_4_4_c.png
ntm_box4_4.frc NTM Box 4.4m /FRC template: ntm_box_4_4_c.png
ntm_box4_4.frc_s.8xx NTM Box 4.4m /FRC Side mounted template: ntm_box_4_4_c.png
ntm_box4_4.frc_2.8xx NTM Box 4.4m /FRC template: ntm_box_4_4_c.png
ntm_box4_4.frc.8xx NTM Box 4.4m /FRC template: ntm_box_4_4_c.png

ntm_box4_4.frc_s_clo NTM Box 4.4m /FRC Side mounted template: ntm_box_4_4_closed.png
ntm_box4_4.frc_2_clo NTM Box 4.4m /FRC template: ntm_box_4_4_closed.png
ntm_box4_4.frc_clo NTM Box 4.4m /FRC template: ntm_box_4_4_closed.png
ntm_box4_4.frc_s_clo.8xx NTM Box 4.4m /FRC Side mounted template: ntm_box_4_4_closed.png
ntm_box4_4.frc_2_clo.8xx NTM Box 4.4m /FRC template: ntm_box_4_4_closed.png
ntm_box4_4.frc_clo.8xx NTM Box 4.4m /FRC template: ntm_box_4_4_closed.png



NÄRKO ( 28 variants ):


acc_list[]: "kuzov.narko_box4"

narko_box4.dry Narko Box 4m /DRY template: narko_box_4.png
narko_box4.dry.8xx Narko Box 4m /DRY template: narko_box_4.png

narko_box4.dry_clo Narko Box 4m /DRY template: narko_box_4_closed.png
narko_box4.dry_clo.8xx Narko Box 4m /DRY template: narko_box_4_closed.png

narko_box4.frc_s Narko Box 4m /FRC Side mounted template: narko_box_4_c.png
narko_box4.frc Narko Box 4m /FRC template: narko_box_4_c.png
narko_box4.frc_s.8xx Narko Box 4m /FRC Side mounted template: narko_box_4_c.png
narko_box4.frc.8xx Narko Box 4m /FRC template: narko_box_4_c.png

narko_box4.frc_s_clo Narko Box 4m /FRC Side mounted template: narko_box_4_closed_c.png
narko_box4.frc_clo Narko Box 4m /FRC template: narko_box_4_closed_c.png
narko_box4.frc_s_clo.8xx Narko Box 4m /FRC Side mounted template: narko_box_4_closed_c.png
narko_box4.frc_clo.8xx Narko Box 4m /FRC template: narko_box_4_closed_c.png

acc_list[]: "kuzov.narko_box4_4"

narko_box4_4.dry Narko Box 4.4m /DRY template: narko_box_4_4.png
narko_box4_4.dry.8xx Narko Box 4.4m /DRY template: narko_box_4_4.png

narko_box4_4.dry_clo Narko Box 4.4m /DRY template: narko_box_4_4_closed.png
narko_box4_4.dry_clo.8xx Narko Box 4.4m /DRY template: narko_box_4_4_closed.png

narko_box4_4.frc_s Narko Box 4.4m /FRC Side mounted template: narko_box_4_4_c.png
narko_box4_4.frc_2 Narko Box 4.4m /FRC template: narko_box_4_4_c.png
narko_box4_4.frc Narko Box 4.4m /FRC template: narko_box_4_4_c.png
narko_box4_4.frc_s.8xx Narko Box 4.4m /FRC Side mounted template: narko_box_4_4_c.png
narko_box4_4.frc_2.8xx Narko Box 4.4m /FRC template: narko_box_4_4_c.png
narko_box4_4.frc.8xx Narko Box 4.4m /FRC template: narko_box_4_4_c.png

narko_box4_4.frc_s_clo Narko Box 4.4m /FRC Side mounted template: narko_box_4_4_closed.png
narko_box4_4.frc_2_clo Narko Box 4.4m /FRC template: narko_box_4_4_closed.png
narko_box4_4.frc_clo Narko Box 4.4m /FRC template: narko_box_4_4_closed.png
narko_box4_4.frc_s_clo.8xx Narko Box 4.4m /FRC Side mounted template: narko_box_4_4_closed.png
narko_box4_4.frc_2_clo.8xx Narko Box 4.4m /FRC template: narko_box_4_4_closed.png
narko_box4_4.frc_clo.8xx Narko Box 4.4m /FRC template: narko_box_4_4_closed.png



KRAKER ( 2 variants ):


acc_list[]: "kuzov.kraker"

kraker.short Kraker Box(truckpaint) templates: kraker_box.png\kraker_box_uv.png
kraker.short.8xx Kraker Box(truckpaint) templates: kraker_box.png\kraker_box_uv.png



KNAPEN ( 4 variants ):


acc_list[]: "kuzov.knapen_4"

knapen_4.wfloor Knapen Body 4m template: knapen_box_4.png
knapen_4.wfloor.8xx Knapen Body 4m template: knapen_box_4.png

acc_list[]: "kuzov.knapen_4_2"

knapen_4_2.wfloor Knapen Body 4.2m template: knapen_box_4_2.png
knapen_4_2.wfloor.8xx Knapen Body 4.2m template: knapen_box_4_2.png



EKERI ( 21 variants ):


acc_list[]: "kuzov.ekeri_box4"

ekeri_box4.frc_s Ekeri Box 4m /FRC Side mounted template: ekeri_box.png
ekeri_box4.frc Ekeri Box 4m /FRC template: ekeri_box.png
ekeri_box4.dry Ekeri Box 4m /DRY template: ekeri_box.png

ekeri_box4.frc_s.6900 Ekeri Box 4m /FRC Side mounted template: ekeri_box_6900x4m.png
ekeri_box4.frc.6900 Ekeri Box 4m /FRC template: ekeri_box_6900x4m.png
ekeri_box4.dry.6900 Ekeri Box 4m /DRY template: ekeri_box_6900x4m.png

ekeri_box4.frc_s.8xx Ekeri Box 4m /FRC Side mounted template: ekeri_box.png
ekeri_box4.frc.8xx Ekeri Box 4m /FRC template: ekeri_box.png
ekeri_box4.dry.8xx Ekeri Box 4m /DRY template: ekeri_box.png

acc_list[]: "kuzov.ekeri_box4_4"

ekeri_box4_4.frc_s Ekeri Box 4.4m /FRC Side mounted template: ekeri_box4_4.png
ekeri_box4_4.frc_2 Ekeri Box 4.4m /FRC template: ekeri_box4_4.png
ekeri_box4_4.frc Ekeri Box 4.4m /FRC template: ekeri_box4_4.png
ekeri_box4_4.dry Ekeri Box 4.4m /DRY template: ekeri_box4_4.png

ekeri_box4_4.frc_s.6900 Ekeri Box 4.4m /FRC Side mounted template: ekeri_box_6900x4_4m.png
ekeri_box4_4.frc_2.6900 Ekeri Box 4.4m /FRC template: ekeri_box_6900x4_4m.png
ekeri_box4_4.frc.6900 Ekeri Box 4.4m /FRC template: ekeri_box_6900x4_4m.png
ekeri_box4_4.dry.6900 Ekeri Box 4.4m /DRY template: ekeri_box_6900x4_4m.png

ekeri_box4_4.frc_s.8xx Ekeri Box 4.4m /FRC Side mounted template: ekeri_box4_4.png
ekeri_box4_4.frc_2.8xx Ekeri Box 4.4m /FRC template: ekeri_box4_4.png
ekeri_box4_4.frc.8xx Ekeri Box 4.4m /FRC template: ekeri_box4_4.png
ekeri_box4_4.dry.8xx Ekeri Box 4.4m /DRY template: ekeri_box4_4.png
as I only have checked the boxes I had since previous releases, I haven't checked the new boxes...
I did noticed a few things about the Narko .... height between the non-closed AND closed 4m/4.4m was a bit different AND a (possibly) missing template for narko_box_4_4_closed_c.png

And here's my PSD-template for these boxes ... https://modsfire.com/g0ETIO5Tk51gRoY 8-)

******************************************************************************************************************************************************************************************************************************


As you see, Kast's Tandem Addon ( awesome work...if there was an Award Ceremony for modding it would be a grandslam 🏆🏆🏆🏆🏆 ) are a real challenge to skin
( if you're like me and want ALL to work that is ) :lol:
You can play it safe and do as many others and just play with one combination (trust me, I've thought about it many times)
or just replace textures, but that's cheating and if the skin is shared, could upset people who doesn't know how it works...modconflicts and other issues :lol:

******************************************************************************************************************************************************************************************************************************


So, is there ANY more that needs to be explained :?:
I think I covered it ALL ...I can't do (even if I wanted to) this for everyone/anyone that ask me to because it's hard to understand :oops:
YOU learn by trying, one time - maybe gives you headache, 2nd time - you might get the hang of it...

Just take it slow&easy ...not rushing ...check filepaths, one, two, as many times you need - just to have everything correct .... :geek: :ugeek:
start with ONE of the boxes... there are as mentioned a lot of templates to use and even me
( yeah it's true, still have issues doing stuff ) hates it from time to time, then takes a normal truck for a while and plays the game, thinking about how to approach it the next time....if there will be one.... ;)

******************************************************************************************************************************************************************************************************************************

WHATABOUT THE TRAILERS ????

Yeah, whatabout them... well same way...check the files ...
:D even more work with these ones...
are there MORE trailers coming :?: :?: :roll: ... a part of me hopes NOT, but others says YES - Great WORK Kast !!!! :lol:

Truth is, that almost every trailer made by Kast I have made available ( well a few left )
for even easier skinning ..just tick boxes for parts and stuff...and then add textures and finally a few-steps-later
EXPORT it to a READY-TO-PLAY-MOD :o :shock:
short videopresentation HERE viewtopic.php?f=34&t=274650&start=380#p1290871
Amazing software which have plenty of more to come...
and it's available really close...get it, help with development, get help in the discordchannel, contribute in any way you like :D

what ?? you haven't figured out the searchbar yet :?: :?: :? :cry:
well .... I'm to kind


Official thread on this forum .....
viewtopic.php?f=34&t=274650

Homepage
http://www.mods.studio/home


******************************************************************************************************************************************************************************************************************************

well, that's ALL folks ...
but I'll bookmark a post underneath this for future HOW-TO-STUFF to keep this post short
;) :P
(if it's allowed....we'll see what happens with it - if it get's moderated away or NOT) :shock:
Last edited by m1keY on 12 Oct 2020 03:01, edited 1 time in total.

User avatar
m1keY
Posts: 5287
Joined: 18 Oct 2015 22:49
Contact:

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#2 Post by m1keY » 11 Feb 2020 22:26

**mine too..let me have it** :| :geek:

SHORT TUTORIAL HOW-TO ADD RIGID CAPABILITIES TO EXISTING TRUCKSKINS
(decided to do a custom truckskin of my own, spotted a livery I liked, but giving it a slightly different look than the original ones)
Original truckskin can be seen on http://gavlefjarr.se/ ( those darn lines I can't create on my own.... have never used/learnt Illustrator so NOT sure how to....but it's a game, close-enough=good-enough ) :D

just to get a headstart of it, made a custom truckskin for the non-rigid trucks ( small changes will be made to the skin - such as lines/graphics extended over to sideskirt, and maybe onto the boxes - just testing now... )
Skin itself made with the templates for the Scania 2016 R/S ( ...obtained from threads mentioned in the previous post above )

******************************************************************************************************************************************************************************************************************************

Textures I use are:
  • the main truckskin (what you see obviously) gff_0.tobj
  • black texture (front mirror,side mirror, front grillparts, sunshield) acc_1.tobj
  • red texture (front grillparts) acc_0.tobj
  • yellow texture (fenders, bumpers,sideskirts) acc_2.tobj
MOD compiled with ModsStudio2 ( only using the default accessories to get the look....there are plenty more to add, but keeping it simple as is )
SiiNunit
{

simple_paint_job_data : .ovr0
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_0.tobj"
acc_list[]: "f_intk_b_cab.painted"
acc_list[]: "f_intk_b_chs.painted"

}

simple_paint_job_data : .ovr1
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
acc_list[]: "f_mirror.painted"
acc_list[]: "s_mirror.painted"
acc_list[]: "f_light_top.stock_p"
acc_list[]: "f_light_top.stk_nrm_p"
acc_list[]: "f_wnd_frame.painted"
acc_list[]: "f_light_chs.shape1_p.sii"
acc_list[]: "f_light_chs.shape2_p.sii"
acc_list[]: "f_inlay_chs.painted"
acc_list[]: "f_inlay_cab.painted"
acc_list[]: "sunshld.sunshld_06"
acc_list[]: "sunshld.sunshld_05"
acc_list[]: "sunshld.sunshld_04"
acc_list[]: "sunshld.sunshld_01"
acc_list[]: "sunshld.stock"

}

simple_paint_job_data : .ovr2
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
acc_list[]: "sideskirt.4x2_p"
acc_list[]: "sideskirt.4x2_p_1"
acc_list[]: "sideskirt.4x2_p_2"
acc_list[]: "sideskirt.4x2_p_v8"
acc_list[]: "sideskirt.4x2_p_v8_1"
acc_list[]: "sideskirt.4x2_p_v8_2"
acc_list[]: "sideskirt.6x2l_p"
acc_list[]: "sideskirt.6x2l_p_1"
acc_list[]: "sideskirt.6x2l_p_2"
acc_list[]: "sideskirt.6x2l_p_v8"
acc_list[]: "sideskirt.6x2l_p_v8_1"
acc_list[]: "sideskirt.6x2l_p_v8_2"
acc_list[]: "sideskirt.6x2_p"
acc_list[]: "sideskirt.6x2_p_1"
acc_list[]: "sideskirt.6x2_p_2"
acc_list[]: "sideskirt.6x2_p_v8"
acc_list[]: "sideskirt.6x2_p_v8_1"
acc_list[]: "sideskirt.6x2_p_v8_2"
acc_list[]: "sideskirt.8x4_p"
acc_list[]: "f_bumper.hgh_p"
acc_list[]: "f_bumper.hgh_p_nofog"
acc_list[]: "f_bumper.low_p"
acc_list[]: "f_bumper.low_p_nofog"
acc_list[]: "f_bumper.mid_p"
acc_list[]: "f_bumper.mid_p_nofog"
acc_list[]: "f_fender.hgh_blk_p"
acc_list[]: "f_fender.hgh_p"
acc_list[]: "f_fender.stock_blk_p"
acc_list[]: "f_fender.stock_p"
acc_list[]: "r_fender.4x2_blk_p"
acc_list[]: "r_fender.4x2_p"
acc_list[]: "r_fender.6x2l_blk_p"
acc_list[]: "r_fender.6x2l_p"
acc_list[]: "r_fender.6x2_blk_p"
acc_list[]: "r_fender.6x2_p"
acc_list[]: "r_fender.8x4_blk_p"
acc_list[]: "r_fender.8x4_p"
acc_list[]: "mirror.painted_f"
acc_list[]: "mirror.painted_full"
acc_list[]: "mirror.painted"
acc_list[]: "f_light_mid.painted"
acc_list[]: "r_bumper.duty_p"
acc_list[]: "r_bumper.stock_p"
acc_list[]: "r_bumper.mg01"
acc_list[]: "r_bumper.mg03"
acc_list[]: "r_bumper.mg04"
acc_list[]: "r_chs_cover.4x2_p"
acc_list[]: "r_chs_cover.6xn_p"
acc_list[]: "r_chs_cover.6xnl_p"
acc_list[]: "r_chs_cover.4x2_dia"
acc_list[]: "r_chs_cover.6xn_dia"
acc_list[]: "r_chs_cover.6xnl_dia"
acc_list[]: "exhaust_m.mg01"
acc_list[]: "r_fender.8x4_spcgr_p"
acc_list[]: "r_fender.4x2_spcgr_p"
acc_list[]: "r_fender.6x2_spcgr_p"
acc_list[]: "r_fender.6x2l_spcgr_p"

}
}
Image Image

******************************************************************************************************************************************************************************************************************************

to start with... the additional ACC_LIST required for the truckskin you want a proper rigid skin for
(examples are specially for the NextGen, maybe a few changes/differences when using for RJL or other truck...if so, follow examples/method from previous post)
##THE MILLION OTHER ACC_LISTS From VARIOUS MODS ABOVE THESE LINES

##RIGID STUFF

simple_paint_job_data : .ovr100
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/ekeri_box_skin.tobj"
acc_list[]: "kuzov.ekeri_box4"
acc_list[]: "kuzov.ekeri_box4_4"
acc_list[]: "kuzov.ekeri_box4s"
acc_list[]: "kuzov.ekeri_box44s"
}

simple_paint_job_data : .ovr200
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/kraker_skin.tobj"
acc_list[]: "kuzov.kraker"
acc_list[]: "kuzov.kraker_s"
}

simple_paint_job_data : .ovr300
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/ntm_box_skin.tobj"
acc_list[]: "kuzov.ntm_box4"
acc_list[]: "kuzov.ntm_box4_4"
acc_list[]: "kuzov.ntm_box4s"
acc_list[]: "kuzov.ntm_box44s"

}

simple_paint_job_data : .ovr400
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/vak_box_skin.tobj"
acc_list[]: "kuzov.vak_box4"
acc_list[]: "kuzov.vak_box4_4"
acc_list[]: "kuzov.vak_box4_5"
acc_list[]: "kuzov.vak_box4s"
acc_list[]: "kuzov.vak_box44s"

}

simple_paint_job_data : .ovr500
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/narko_box_skin.tobj"
acc_list[]: "kuzov.narko_box4"
acc_list[]: "kuzov.narko_box4_4"
acc_list[]: "kuzov.narko_box4s"
acc_list[]: "kuzov.narko_box44s"

}

simple_paint_job_data : .ovr600
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/knapen_skin.tobj"
acc_list[]: "kuzov.knapen_4"
acc_list[]: "kuzov.knapen_4_2"
acc_list[]: "kuzov.knapen_4s"
acc_list[]: "kuzov.knapen_4_2s"
}

simple_paint_job_data : .ovr700
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "bdf_stuff_r.paint"
acc_list[]: "fueltanks.paint_tandem"
acc_list[]: "sidecooler.paint"
acc_list[]: "cooler.ekeheat_p"
acc_list[]: "cooler.heater_p"

acc_list[]: "m_plate.ekeri_p"
acc_list[]: "m_plate.ekeri_p2"
acc_list[]: "m_plate_b.ekeri_p"
acc_list[]: "m_plate_b.ekeri_p2"

acc_list[]: "rigid_f_l.paint"
acc_list[]: "rigid_f_r.paint"
acc_list[]: "axles.6x2_4b"
acc_list[]: "axles.6x4_4"
acc_list[]: "axles.8x4_4"
acc_list[]: "axles.8x4_4b"
acc_list[]: "axles.8x2"
acc_list[]: "chs.paint"

acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr800
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"

acc_list[]: "fenders_b.parlok_l_np"
acc_list[]: "fenders_b.parlok"
acc_list[]: "fenders_b.parlok_np"
acc_list[]: "fenders_b.parlok_cut"
acc_list[]: "fenders_c.parlok_l_np"
acc_list[]: "fenders_c.parlok"
acc_list[]: "fenders_c.parlok_np"
acc_list[]: "fenders_c.parlok_cut"
acc_list[]: "fenders_t.parlok_l_np"
acc_list[]: "fenders_t.parlok"
acc_list[]: "fenders_t.parlok_np"
acc_list[]: "fenders_t.parlok_cut"

}

simple_paint_job_data : .ovr900
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "bdf_stuff_r.paint"
acc_list[]: "fueltanks.paint_tandem"
acc_list[]: "sidecooler.paint"
acc_list[]: "cooler.ekeheat_p"
acc_list[]: "cooler.heater_p"

}

simple_paint_job_data : .ovr1000
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "r_porikad.r_mdflap"

}
}
So if you just pick the rigid options ( or any other accessorymod for normal trucks - sideskirts, sunshields, mirrors... ) in the game with that truckskin made with the default acc_list lines - like the one above you will get some errors...
errors - which is because of the missing acc_list lines inside your mod for that particular accessory... ( how-to find the names is explained in previous post )
OK, back to the example now - choosing the Rigid options without adding these lines it will probably be looking like this.... main skin will pop-up on various accessories...like the sideskirts, box obviously :P

Image Image

What you need to do is to add the above mentioned [RIGID ACC_LIST STUFF] to your skin AND ofcourse textures to the parts you wish to have your custom touch ON. 8-)

******************************************************************************************************************************************************************************************************************************

SO, adding those additional rigidlines to the skin and assign textures to the boxes...and the other stuff...
Yellow for ALL the boxes, side/chassiboxes to start with so you see the results...
Added a new texture to the fenders ( black with a white line outside ) ( for this example, I put a filepath to existing ones in another skinmod ...yes, I'm lazy ) :lol:
I could have used the black one I already had ;) ...at the same time, re-located a couple of acc_list lines to another texture than the rest.
I also did some rework on the cabingraphics...stretching the lines onto the sidespoiler ( still w.i.p )
# infront of the lines = outruled = NOT used / NOT read by the game
SiiNunit
{

simple_paint_job_data : .ovr0
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_0.tobj"
acc_list[]: "f_intk_b_cab.painted"
acc_list[]: "f_intk_b_chs.painted"

}

simple_paint_job_data : .ovr1
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
acc_list[]: "f_mirror.painted"
acc_list[]: "s_mirror.painted"
acc_list[]: "f_light_top.stock_p"
acc_list[]: "f_light_top.stk_nrm_p"
acc_list[]: "f_wnd_frame.painted"
acc_list[]: "f_light_chs.shape1_p.sii"
acc_list[]: "f_light_chs.shape2_p.sii"
acc_list[]: "f_inlay_chs.painted"
acc_list[]: "f_inlay_cab.painted"
acc_list[]: "sunshld.sunshld_06"
acc_list[]: "sunshld.sunshld_05"
acc_list[]: "sunshld.sunshld_04"
acc_list[]: "sunshld.sunshld_01"
acc_list[]: "sunshld.stock"

}

simple_paint_job_data : .ovr2
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
acc_list[]: "sideskirt.4x2_p"
acc_list[]: "sideskirt.4x2_p_1"
acc_list[]: "sideskirt.4x2_p_2"
acc_list[]: "sideskirt.4x2_p_v8"
acc_list[]: "sideskirt.4x2_p_v8_1"
acc_list[]: "sideskirt.4x2_p_v8_2"
acc_list[]: "sideskirt.6x2l_p"
acc_list[]: "sideskirt.6x2l_p_1"
acc_list[]: "sideskirt.6x2l_p_2"
acc_list[]: "sideskirt.6x2l_p_v8"
acc_list[]: "sideskirt.6x2l_p_v8_1"
acc_list[]: "sideskirt.6x2l_p_v8_2"
acc_list[]: "sideskirt.6x2_p"
acc_list[]: "sideskirt.6x2_p_1"
acc_list[]: "sideskirt.6x2_p_2"
acc_list[]: "sideskirt.6x2_p_v8"
acc_list[]: "sideskirt.6x2_p_v8_1"
acc_list[]: "sideskirt.6x2_p_v8_2"
acc_list[]: "sideskirt.8x4_p"
acc_list[]: "f_bumper.hgh_p"
acc_list[]: "f_bumper.hgh_p_nofog"
acc_list[]: "f_bumper.low_p"
acc_list[]: "f_bumper.low_p_nofog"
acc_list[]: "f_bumper.mid_p"
acc_list[]: "f_bumper.mid_p_nofog"
acc_list[]: "f_fender.hgh_blk_p"
acc_list[]: "f_fender.hgh_p"
acc_list[]: "f_fender.stock_blk_p"
acc_list[]: "f_fender.stock_p"
acc_list[]: "r_fender.4x2_blk_p"
acc_list[]: "r_fender.4x2_p"
acc_list[]: "r_fender.6x2l_blk_p"
acc_list[]: "r_fender.6x2l_p"
acc_list[]: "r_fender.6x2_blk_p"
acc_list[]: "r_fender.6x2_p"
acc_list[]: "r_fender.8x4_blk_p"
acc_list[]: "r_fender.8x4_p"
acc_list[]: "mirror.painted_f"
acc_list[]: "mirror.painted_full"
acc_list[]: "mirror.painted"
acc_list[]: "f_light_mid.painted"
acc_list[]: "r_bumper.duty_p"
acc_list[]: "r_bumper.stock_p"
acc_list[]: "r_bumper.mg01"
acc_list[]: "r_bumper.mg03"
acc_list[]: "r_bumper.mg04"
acc_list[]: "r_chs_cover.4x2_p"
acc_list[]: "r_chs_cover.6xn_p"
acc_list[]: "r_chs_cover.6xnl_p"
acc_list[]: "r_chs_cover.4x2_dia"
acc_list[]: "r_chs_cover.6xn_dia"
acc_list[]: "r_chs_cover.6xnl_dia"
acc_list[]: "exhaust_m.mg01"
acc_list[]: "r_fender.8x4_spcgr_p"
acc_list[]: "r_fender.4x2_spcgr_p"
acc_list[]: "r_fender.6x2_spcgr_p"
acc_list[]: "r_fender.6x2l_spcgr_p"

}

##THE MILLION OTHER ACC_LISTS From VARIOUS MODS ABOVE THESE LINES

##RIGID STUFF

simple_paint_job_data : .ovr100
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/ekeri_box_skin.tobj"
acc_list[]: "kuzov.ekeri_box4"
acc_list[]: "kuzov.ekeri_box4_4"
acc_list[]: "kuzov.ekeri_box4s"
acc_list[]: "kuzov.ekeri_box44s"
}

simple_paint_job_data : .ovr200
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/kraker_skin.tobj"
acc_list[]: "kuzov.kraker"
acc_list[]: "kuzov.kraker_s"
}

simple_paint_job_data : .ovr300
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/ntm_box_skin.tobj"
acc_list[]: "kuzov.ntm_box4"
acc_list[]: "kuzov.ntm_box4_4"
acc_list[]: "kuzov.ntm_box4s"
acc_list[]: "kuzov.ntm_box44s"

}

simple_paint_job_data : .ovr400
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/vak_box_skin.tobj"
acc_list[]: "kuzov.vak_box4"
acc_list[]: "kuzov.vak_box4_4"
acc_list[]: "kuzov.vak_box4_5"
acc_list[]: "kuzov.vak_box4s"
acc_list[]: "kuzov.vak_box44s"

}

simple_paint_job_data : .ovr500
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/narko_box_skin.tobj"
acc_list[]: "kuzov.narko_box4"
acc_list[]: "kuzov.narko_box4_4"
acc_list[]: "kuzov.narko_box4s"
acc_list[]: "kuzov.narko_box44s"

}

simple_paint_job_data : .ovr600
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/knapen_skin.tobj"
acc_list[]: "kuzov.knapen_4"
acc_list[]: "kuzov.knapen_4_2"
acc_list[]: "kuzov.knapen_4s"
acc_list[]: "kuzov.knapen_4_2s"
}

simple_paint_job_data : .ovr700
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "bdf_stuff_r.paint"
acc_list[]: "fueltanks.paint_tandem"
acc_list[]: "sidecooler.paint"
acc_list[]: "cooler.ekeheat_p"
acc_list[]: "cooler.heater_p"

acc_list[]: "m_plate.ekeri_p"
acc_list[]: "m_plate.ekeri_p2"
acc_list[]: "m_plate_b.ekeri_p"
acc_list[]: "m_plate_b.ekeri_p2"

acc_list[]: "rigid_f_l.paint"
acc_list[]: "rigid_f_r.paint"
acc_list[]: "axles.6x2_4b"
acc_list[]: "axles.6x4_4"
acc_list[]: "axles.8x4_4"
acc_list[]: "axles.8x4_4b"
acc_list[]: "axles.8x2"
# acc_list[]: "chs.paint"

# acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr800
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.s_2016/ng_oldscho/accessories/acc_1.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"

acc_list[]: "fenders_b.parlok_l_np"
acc_list[]: "fenders_b.parlok"
acc_list[]: "fenders_b.parlok_np"
acc_list[]: "fenders_b.parlok_cut"
acc_list[]: "fenders_c.parlok_l_np"
acc_list[]: "fenders_c.parlok"
acc_list[]: "fenders_c.parlok_np"
acc_list[]: "fenders_c.parlok_cut"
acc_list[]: "fenders_t.parlok_l_np"
acc_list[]: "fenders_t.parlok"
acc_list[]: "fenders_t.parlok_np"
acc_list[]: "fenders_t.parlok_cut"

# acc_list[]: "chs.paint"
# acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr850
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"

acc_list[]: "chs.paint"
acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr900
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "bdf_stuff_r.paint"
acc_list[]: "fueltanks.paint_tandem"
acc_list[]: "sidecooler.paint"
acc_list[]: "cooler.ekeheat_p"
acc_list[]: "cooler.heater_p"

}

simple_paint_job_data : .ovr1000
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "r_porikad.r_mdflap"

}
}

Image Image

******************************************************************************************************************************************************************************************************************************

Well, FINALLY in these previewimages below, I have added companyname to the boxes, left, right and backside ( = new texture ... acc_3.tobj )
NOTE: I did this for the Ekeri 4.4m BOX... texture might work without adjusting to the other boxes with same height, or NOT, if NOT...you need another texture for those boxes.... :ugeek:
Hopefully this short tutorial will make things easier for You to make your own skin... can it be any easier - besides making someone else do the skin :?: :roll: :) :geek: :lol:
SiiNunit
{

simple_paint_job_data : .ovr0
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_0.tobj"
acc_list[]: "f_intk_b_cab.painted"
acc_list[]: "f_intk_b_chs.painted"

}

simple_paint_job_data : .ovr1
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
acc_list[]: "f_mirror.painted"
acc_list[]: "s_mirror.painted"
acc_list[]: "f_light_top.stock_p"
acc_list[]: "f_light_top.stk_nrm_p"
acc_list[]: "f_wnd_frame.painted"
acc_list[]: "f_light_chs.shape1_p.sii"
acc_list[]: "f_light_chs.shape2_p.sii"
acc_list[]: "f_inlay_chs.painted"
acc_list[]: "f_inlay_cab.painted"
acc_list[]: "sunshld.sunshld_06"
acc_list[]: "sunshld.sunshld_05"
acc_list[]: "sunshld.sunshld_04"
acc_list[]: "sunshld.sunshld_01"
acc_list[]: "sunshld.stock"

}

simple_paint_job_data : .ovr2
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
acc_list[]: "sideskirt.4x2_p"
acc_list[]: "sideskirt.4x2_p_1"
acc_list[]: "sideskirt.4x2_p_2"
acc_list[]: "sideskirt.4x2_p_v8"
acc_list[]: "sideskirt.4x2_p_v8_1"
acc_list[]: "sideskirt.4x2_p_v8_2"
acc_list[]: "sideskirt.6x2l_p"
acc_list[]: "sideskirt.6x2l_p_1"
acc_list[]: "sideskirt.6x2l_p_2"
acc_list[]: "sideskirt.6x2l_p_v8"
acc_list[]: "sideskirt.6x2l_p_v8_1"
acc_list[]: "sideskirt.6x2l_p_v8_2"
acc_list[]: "sideskirt.6x2_p"
acc_list[]: "sideskirt.6x2_p_1"
acc_list[]: "sideskirt.6x2_p_2"
acc_list[]: "sideskirt.6x2_p_v8"
acc_list[]: "sideskirt.6x2_p_v8_1"
acc_list[]: "sideskirt.6x2_p_v8_2"
acc_list[]: "sideskirt.8x4_p"
acc_list[]: "f_bumper.hgh_p"
acc_list[]: "f_bumper.hgh_p_nofog"
acc_list[]: "f_bumper.low_p"
acc_list[]: "f_bumper.low_p_nofog"
acc_list[]: "f_bumper.mid_p"
acc_list[]: "f_bumper.mid_p_nofog"
acc_list[]: "f_fender.hgh_blk_p"
acc_list[]: "f_fender.hgh_p"
acc_list[]: "f_fender.stock_blk_p"
acc_list[]: "f_fender.stock_p"
acc_list[]: "r_fender.4x2_blk_p"
acc_list[]: "r_fender.4x2_p"
acc_list[]: "r_fender.6x2l_blk_p"
acc_list[]: "r_fender.6x2l_p"
acc_list[]: "r_fender.6x2_blk_p"
acc_list[]: "r_fender.6x2_p"
acc_list[]: "r_fender.8x4_blk_p"
acc_list[]: "r_fender.8x4_p"
acc_list[]: "mirror.painted_f"
acc_list[]: "mirror.painted_full"
acc_list[]: "mirror.painted"
acc_list[]: "f_light_mid.painted"
acc_list[]: "r_bumper.duty_p"
acc_list[]: "r_bumper.stock_p"
acc_list[]: "r_bumper.mg01"
acc_list[]: "r_bumper.mg03"
acc_list[]: "r_bumper.mg04"
acc_list[]: "r_chs_cover.4x2_p"
acc_list[]: "r_chs_cover.6xn_p"
acc_list[]: "r_chs_cover.6xnl_p"
acc_list[]: "r_chs_cover.4x2_dia"
acc_list[]: "r_chs_cover.6xn_dia"
acc_list[]: "r_chs_cover.6xnl_dia"
acc_list[]: "exhaust_m.mg01"
acc_list[]: "r_fender.8x4_spcgr_p"
acc_list[]: "r_fender.4x2_spcgr_p"
acc_list[]: "r_fender.6x2_spcgr_p"
acc_list[]: "r_fender.6x2l_spcgr_p"

}

##THE MILLION OTHER ACC_LISTS From VARIOUS MODS ABOVE THESE LINES

##RIGID STUFF

simple_paint_job_data : .ovr100
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_3.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/ekeri_box_skin.tobj"
acc_list[]: "kuzov.ekeri_box4"
acc_list[]: "kuzov.ekeri_box4_4"
acc_list[]: "kuzov.ekeri_box4s"
acc_list[]: "kuzov.ekeri_box44s"
}

simple_paint_job_data : .ovr200
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/kraker_skin.tobj"
acc_list[]: "kuzov.kraker"
acc_list[]: "kuzov.kraker_s"
}

simple_paint_job_data : .ovr300
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_3.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/ntm_box_skin.tobj"
acc_list[]: "kuzov.ntm_box4"
acc_list[]: "kuzov.ntm_box4_4"
acc_list[]: "kuzov.ntm_box4s"
acc_list[]: "kuzov.ntm_box44s"

}

simple_paint_job_data : .ovr400
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_3.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/vak_box_skin.tobj"
acc_list[]: "kuzov.vak_box4"
acc_list[]: "kuzov.vak_box4_4"
acc_list[]: "kuzov.vak_box4_5"
acc_list[]: "kuzov.vak_box4s"
acc_list[]: "kuzov.vak_box44s"

}

simple_paint_job_data : .ovr500
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_3.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/narko_box_skin.tobj"
acc_list[]: "kuzov.narko_box4"
acc_list[]: "kuzov.narko_box4_4"
acc_list[]: "kuzov.narko_box4s"
acc_list[]: "kuzov.narko_box44s"

}

simple_paint_job_data : .ovr600
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/knapen_skin.tobj"
acc_list[]: "kuzov.knapen_4"
acc_list[]: "kuzov.knapen_4_2"
acc_list[]: "kuzov.knapen_4s"
acc_list[]: "kuzov.knapen_4_2s"
}

simple_paint_job_data : .ovr700
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "bdf_stuff_r.paint"
acc_list[]: "fueltanks.paint_tandem"
acc_list[]: "sidecooler.paint"
acc_list[]: "cooler.ekeheat_p"
acc_list[]: "cooler.heater_p"

acc_list[]: "m_plate.ekeri_p"
acc_list[]: "m_plate.ekeri_p2"
acc_list[]: "m_plate_b.ekeri_p"
acc_list[]: "m_plate_b.ekeri_p2"

acc_list[]: "rigid_f_l.paint"
acc_list[]: "rigid_f_r.paint"
acc_list[]: "axles.6x2_4b"
acc_list[]: "axles.6x4_4"
acc_list[]: "axles.8x4_4"
acc_list[]: "axles.8x4_4b"
acc_list[]: "axles.8x2"
# acc_list[]: "chs.paint"

# acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr800
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.s_2016/ng_oldscho/accessories/acc_1.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"

acc_list[]: "fenders_b.parlok_l_np"
acc_list[]: "fenders_b.parlok"
acc_list[]: "fenders_b.parlok_np"
acc_list[]: "fenders_b.parlok_cut"
acc_list[]: "fenders_c.parlok_l_np"
acc_list[]: "fenders_c.parlok"
acc_list[]: "fenders_c.parlok_np"
acc_list[]: "fenders_c.parlok_cut"
acc_list[]: "fenders_t.parlok_l_np"
acc_list[]: "fenders_t.parlok"
acc_list[]: "fenders_t.parlok_np"
acc_list[]: "fenders_t.parlok_cut"

# acc_list[]: "chs.paint"
# acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr850
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_1.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"

acc_list[]: "chs.paint"
acc_list[]: "r_lights.shape9"

}

simple_paint_job_data : .ovr900
{
paint_job_mask: "/vehicle/truck/upgrade/paintjob/scania.r_2016/gff/accessories/acc_2.tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "bdf_stuff_r.paint"
acc_list[]: "fueltanks.paint_tandem"
acc_list[]: "sidecooler.paint"
acc_list[]: "cooler.ekeheat_p"
acc_list[]: "cooler.heater_p"

}

simple_paint_job_data : .ovr1000
{
paint_job_mask: ".tobj"
# paint_job_mask: "/vehicle/truck/upgrade/paintjob/tandem_kast/default_paint/red_parts.tobj"
acc_list[]: "r_porikad.r_mdflap"

}
}

Image Image
Last edited by m1keY on 23 Feb 2020 16:18, edited 9 times in total.

User avatar
m1keY
Posts: 5287
Joined: 18 Oct 2015 22:49
Contact:

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#3 Post by m1keY » 11 Feb 2020 22:27

**just to be safe...for future posts** :o 3 is enough, I promise

W.I.P - SHORT TUTORIAL HOW-TO SKIN TANDEMTRAILERS

ekeri acc_list ( semis&tandems )
Ekeri Trailers /Semi & Tandem
*************************************************

##BODY (TRAILERS)
//ekeri (foldername)
acc_list[]: "body.mid_box"
acc_list[]: "body.mid_box_c"
acc_list[]: "body.mid_box_c2"
acc_list[]: "body.4_box"
acc_list[]: "body.4_4_box"
//ekeri - dolly tandem option
acc_list[]: "body.body_dolly"
//ekeri.city
acc_list[]: "body.city_box"
//ekeri.jumbo
acc_list[]: "body.stepframe"
acc_list[]: "body.stepframe_c"
//ekeri.rigid
acc_list[]: "body.r22_tandem"
acc_list[]: "body.body_dolly2"
//ekeri.rigid_long
acc_list[]: "body.b_tandem"
acc_list[]: "body.body_dolly"
//ekeri.rigid_long12
acc_list[]: "body.tandem12"
acc_list[]: "body.body_dolly2"
//ekeri.rigid_short
acc_list[]: "body.s_tandem"
acc_list[]: "body.s_tandem4_4"
acc_list[]: "body.body_dolly"
//ekeri.rigid12
acc_list[]: "body.r22_tandem12"
acc_list[]: "body.body_dolly2"


##AXLES
acc_list[]: "axles.axles_1"

acc_list[]: "axles.axles_2s"
acc_list[]: "axles.axles_2mid"

acc_list[]: "axles.axles_3"
acc_list[]: "axles.axles_3s"
acc_list[]: "axles.axles_3mid"

acc_list[]: "axles.axles_step"

acc_list[]: "axles.axles_1x2"
acc_list[]: "axles.axles_2x2"
acc_list[]: "axles.axles_2x3"

##CHASSIBOXES
//FRONT LEFT
acc_list[]: "chs_f_l.paint"
acc_list[]: "chs_f_l.paint_box"
acc_list[]: "chs_f_l.paint_box_c"
acc_list[]: "chs_f_l.paint_box_m"
acc_list[]: "chs_f_l.paint_box2"
acc_list[]: "chs_f_l.paint_box3"

acc_list[]: "chs_f_l.paint_2ax"
acc_list[]: "chs_f_l.paint_2ax2"
acc_list[]: "chs_f_l.paint_2ax3"
acc_list[]: "chs_f_l.paint_2ax4"

acc_list[]: "chs_f_l.paint_cover"

acc_list[]: "chs_f_l.paint_rail_m"

acc_list[]: "chs_f_l.paint_step1"
acc_list[]: "chs_f_l.paint_step2"
acc_list[]: "chs_f_l.paint_step3"
acc_list[]: "chs_f_l.paint_step4"
acc_list[]: "chs_f_l.paint_step5"
acc_list[]: "chs_f_l.paint_step6"


//MIDDLE LEFT
acc_list[]: "chs_m_l.paint"
acc_list[]: "chs_m_l.paint_box"
acc_list[]: "chs_m_l.paint_box2"

acc_list[]: "chs_m_l.paint_city"
acc_list[]: "chs_m_l.paint_cover"
acc_list[]: "chs_m_l.paint_rail2"

acc_list[]: "chs_m_l.chrome_box_p"
acc_list[]: "chs_m_l.chrome_box_p"

acc_list[]: "chs_m_l.s_siderail_p"
acc_list[]: "chs_m_l.siderail_p"


//REAR LEFT
acc_list[]: "chs_r_l.paint_box"
acc_list[]: "chs_r_l.paint_box2"
acc_list[]: "chs_r_l.paint_box3"
acc_list[]: "chs_r_l.paint_box4"
acc_list[]: "chs_r_l.paint_box_m"


//WASTETANKS
acc_list[]: "chs_r_l.p_waste"
acc_list[]: "chs_r_l.p_waste_b"
acc_list[]: "chs_r_l.p_waste_b2"
acc_list[]: "chs_r_l.p_waste2"


//FRONT RIGHT
acc_list[]: "chs_f_r.paint"
acc_list[]: "chs_f_r.paint_box"
acc_list[]: "chs_f_r.paint_box2"

acc_list[]: "chs_f_r.paint_2ax"
acc_list[]: "chs_f_r.paint_2ax2"
acc_list[]: "chs_f_r.paint_2ax3"
acc_list[]: "chs_f_r.paint_2ax4"

acc_list[]: "chs_f_l.paint_cover"

acc_list[]: "chs_f_r.paint_step1"
acc_list[]: "chs_f_r.paint_step2"
acc_list[]: "chs_f_r.paint_step3"
acc_list[]: "chs_f_r.paint_step4"
acc_list[]: "chs_f_r.paint_step5"
acc_list[]: "chs_f_r.paint_step6"


//MIDDLE RIGHT
acc_list[]: "chs_m_r.paint_cover"
acc_list[]: "chs_m_r.paint_city"


##FUELTANKS
acc_list[]: "fueltank.fueltank_p"
acc_list[]: "fueltank.fueltank2_p"
acc_list[]: "fueltank.fueltank4"
acc_list[]: "fueltank.fueltank5"
acc_list[]: "fueltank.fueltank_p3"
acc_list[]: "fueltank.fueltank_p4"


##LICENSE PLATES
acc_list[]: "custom_lp.custom_lp"
acc_list[]: "custom_lp.custom_lp2"
acc_list[]: "custom_lp.custom_lp3"
acc_list[]: "custom_lp.custom_lp4"
acc_list[]: "custom_lp.custom_lp_2"
acc_list[]: "custom_lp.custom_lp_5"
acc_list[]: "custom_lp.custom_lp_10"
acc_list[]: "custom_lp.custom_lp_11"
acc_list[]: "custom_lp.custom_lp_12"
acc_list[]: "custom_lp.custom_lp_13"
acc_list[]: "custom_lp.custom_lp_14"
acc_list[]: "custom_lp.lp_tyllis"


##FENDERS
acc_list[]: "fenders_a.parlok"
acc_list[]: "fenders_a.parlok_p"
acc_list[]: "fenders_a.parlok_ref"
acc_list[]: "fenders_a.parlok_refl_p"
acc_list[]: "fenders_a.parlok_ref_p"
acc_list[]: "fenders_a.parlok_ref_s"
acc_list[]: "fenders_a.parlok_s"

acc_list[]: "fenders_b.parlok"
acc_list[]: "fenders_b.parlok_cut"
acc_list[]: "fenders_b.parlok_p"
acc_list[]: "fenders_b.parlok_ref"
acc_list[]: "fenders_b.parlok_ref_p"
acc_list[]: "fenders_b.parlok_ref_s"
acc_list[]: "fenders_b.parlok_s"

acc_list[]: "fenders_c.parlok"
acc_list[]: "fenders_c.parlok_ref"

acc_list[]: "fenders_e.parlok"
acc_list[]: "fenders_e.parlok_p"
acc_list[]: "fenders_e.parlok_ref"
acc_list[]: "fenders_e.parlok_ref_p"

acc_list[]: "fenders_f.parlok"
acc_list[]: "fenders_f.parlok_p"
acc_list[]: "fenders_f.parlok_ref"
acc_list[]: "fenders_f.parlok_ref_p"

acc_list[]: "fenders_g.parlok"
acc_list[]: "fenders_g.parlok_p"
acc_list[]: "fenders_g.parlok_ref"
acc_list[]: "fenders_g.parlok_ref_p"
acc_list[]: "fenders_g.parlok_st_p"

acc_list[]: "fenders_s.parlok_s"
acc_list[]: "fenders_s.parlok_st_p"
acc_list[]: "fenders_s.parlok_ref_s"
acc_list[]: "fenders_s.parlok_ref_s"


##FRAME
acc_list[]: "frame.chassis_2"
acc_list[]: "frame.chassis_2s"

acc_list[]: "frame.chassis_3"
acc_list[]: "frame.chassis_3s"

acc_list[]: "frame.chassis"
acc_list[]: "frame.chassis_p"
acc_list[]: "frame.chassis_step"

acc_list[]: "frame.chas12"
acc_list[]: "frame.chas12_r22"
acc_list[]: "frame.chassis_r22"

acc_list[]: "frame.chassis_1x2"
acc_list[]: "frame.chassis_2x2"
acc_list[]: "frame.chassis_2x3"


##BUMPERS
acc_list[]: "r_bumper.standard_p"
acc_list[]: "r_bumper.standard_sp"
acc_list[]: "r_bumper.hook_p"
acc_list[]: "r_bumper.zepro_p"
acc_list[]: "r_bumper.zepro_p2"


##MUDFLAPS PROBABLY SKINNED ON MAIN TEMPLATE IF IT DOESNT WORK
acc_list[]: "r_mudflap.paint"
acc_list[]: "r_mudflap.paint_s"


##HEATERS/COOLERS
acc_list[]: "f_body.ekeheat_p"
acc_list[]: "f_body.ekeheat_b_p"
acc_list[]: "f_body.hk_430_p"

acc_list[]: "f_body_2.ekeheat_p"
acc_list[]: "f_body_2.ekeheat_b_p"
acc_list[]: "f_body_2.hk_430_p"

acc_list[]: "cooler_s.tk_ut800_p"
acc_list[]: "cooler_s.c_s850_p"


##VENTILATION HATCH
acc_list[]: "f_vent.vent_p"
acc_list[]: "f_vent_2.vent_p"
acc_list[]: "r_reflector.vent_door"
acc_list[]: "r_reflector.vent_ref"
acc_list[]: "r_reflector.vent_plate"
acc_list[]: "r_reflector.vent_plate_r"
To skin the trailers manually these acc_list are needed - To skin them more easily the required .xml-files are available for ModsStudio2 - files available in the Discord channel :!: :D

Image Image
Last edited by m1keY on 23 Feb 2020 16:21, edited 2 times in total.

RudiRaser
Posts: 1453
Joined: 25 Nov 2016 20:53

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#4 Post by RudiRaser » 11 Feb 2020 22:42

great guide, should be sticky. Image

beaubeire
Posts: 34
Joined: 30 May 2020 23:58

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#5 Post by beaubeire » 06 Jun 2020 14:40

Hi @m1keY ,

Great guide, helped me tremendous. I managed to skin the tandem addon.
One thing I don't understand though, I have skinned the box, fenders and sideskirts but now i'm trying to skin the sideskirt-RAIL.
But how do I do this? they aren't listed on the acclist[] on kast his tandem topic.

EDIT: I tried also skinning those domar fenders but couldn't find them in the acclist[] so I changed their color directly in kast his modfolder, but that doesn't feel right


Thanks in advance.

User avatar
m1keY
Posts: 5287
Joined: 18 Oct 2015 22:49
Contact:

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#6 Post by m1keY » 06 Jun 2020 19:16

@beaubeire some things/notes need to be updated in this tutorial ...will check it out a.s.a.p
(was made withe the Scania 2016 as base...so might be some missing things for the RS)

sideskirts are the parts located in the folder rigid_f_l & rigid_f_r and all of those options are simply named

Code: Select all

	acc_list[]: "rigid_f_l.paint"
	acc_list[]: "rigid_f_r.paint"
about the domars fenders ...
I'm not sure there are paintable versions of them, have to get back about those...needs to be investigated 8-)

User avatar
Juniorfreddy777
Posts: 100
Joined: 30 May 2020 13:12
Contact:

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#7 Post by Juniorfreddy777 » 24 Aug 2020 16:54

m1keY: do i need to open .sii files because i cannot open sii files and other strange files.
And i still dont know how to make a skin for the tandem addon by Kast :?


an explanation of what I want to start skinning:
I have Eugene's Scania latest version so I want to make a tandem addon skin for the Eugene scania.
I would like to make a skin for the Ekeri and NTM FRC tandems.
I only have a program called BEM's Easy Modding. For the rest I don't have any programs yet.
Yellow and green are my favourite collors. Thats why i am one off the only people in ets2 that has a yellow or yellow green truck

User avatar
m1keY
Posts: 5287
Joined: 18 Oct 2015 22:49
Contact:

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#8 Post by m1keY » 26 Aug 2020 03:21

well you do need to use a couple of other tools to make your skins...
B.E.M - viewtopic.php?f=34&t=269018 - is a tool like ModsStudio2 - viewtopic.php?f=123&t=274650 to compile and look at certain files....

to make your skin you use the templates provided in various threads... such as Kast's tandem addon, Eugene's reworked scania and so on ...

template for all trucks can be found in this forum aswell...
ETS2: viewtopic.php?f=33&t=272386 / read this post and follow the links: https://steamcommunity.com/sharedfiles/ ... =695738881
ATS: viewtopic.php?f=199&t=288778

these templates above are used in this -
photo editing softwares:

paint.net - https://www.getpaint.net/ (freeware)
gimp - https://www.gimp.org/ (freeware)
photoshop - https://www.adobe.com/se/products/photoshop.html (free to try....)

file editing software:

notepad++ - https://notepad-plus-plus.org/ - the one to open files such as .sii and more ...
if never opened this file before..rightclick file choose open with ..and browse to the .exe for the software...

this goes for .scs files aswell (which basically is a .zip file) ...open with ... pick your unpacking/packing software winrar/winzip/7zip .... (to download any, google it) ;)

sure there's plenty more to pick from, but this is probably the one used the most here...I could be wrong... :P

with these software's and templates you are good to go...
download some mods and check how they are made and you get the basic knowledge out of it

anything else can be found on this forum and discord channels.... feel free to ask for help... :)

asouth
Posts: 10
Joined: 01 Jun 2019 12:04

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#9 Post by asouth » 25 Sep 2020 09:21

Great work m1keY!
Appreciated to your detail sharing!

And i would like to have more explanation from you if you don't mind ;)
Regarding to MISSING ACC_LIST PREVIEWIMAGES
How to get the proper image to certain parts via modifying the .sii file?
I would like to try but i have no clue at all :oops:

Please refer to below screenshot.
Mod use:
Skin - Scania's V8 50th Anniversary Limited Edition Skin by Uşaklı
Sunshield - Update Extended Sunshield for Next Gen Scania by Samuelswe/gfeldsherov
Sideskirts - Big Pack Scania Next Gen v1.4 by HorseeHorse
Spoiler - Spoiler by BHR
I hope you can understand my poor english :oops:
Looking forward to your warmhearted sharing :D

User avatar
m1keY
Posts: 5287
Joined: 18 Oct 2015 22:49
Contact:

Re: [GUIDE] HOW-TO Get A Proper Skin On The ( new ) Trucks

#10 Post by m1keY » 26 Sep 2020 09:31

@asouth
those mods I haven't got, but you can get those acc_list names by simply following the steps in the

ACCESSORIES AND HOW-TO GET THEM = ACC_LIST section
and give these accessories a basetexture from that main skin (silver/grey/metallic look)
you probably have one for it in that skinmod itself...just use the same filepath for these accessories

probably for that frontlip aswell and the rear fenders as it looks like the mainskin is put onto them aswell...

Post Reply

Return to “Modding Guides”

Who is online

Users browsing this forum: No registered users and 2 guests
