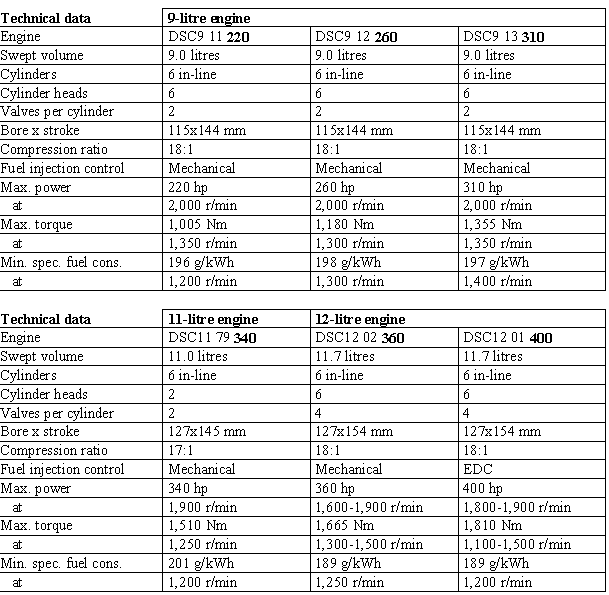

Look what i've found! A data from February 1996 for Scania 4 Series.

[ external image ]

[ external image ]

[ external image ]

[Aji Damarjati]

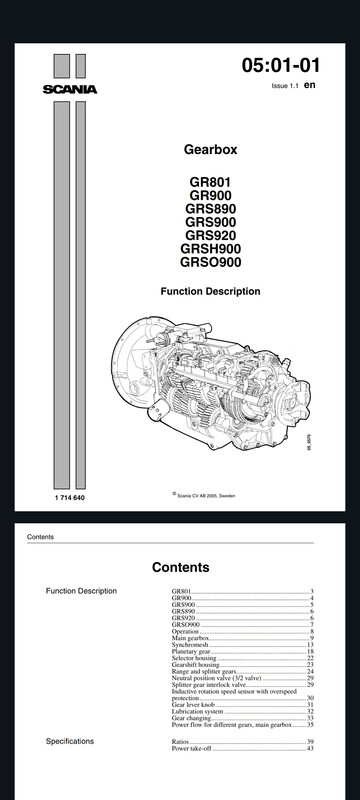

I also found this document, a complete range of Scania gearbox from 2005.

https://drive.google.com/file/d/1CZRwNE ... p=drivesdk

[ external image ]

[cwat89]

Hi, so i've been editing mod engine torque curves for a while now thanks to rookie_one's documentation and others who have helped compile it. You guys are awesome finding this info!! I wanted to make sure I am reading the SCS wiki documentation correctly when it comes to torque curves. The way I read it is any rpm value below 300 and above 2600 is ignored, correct? Because I see a lot of these engine sound modders putting in values below and above these thresholds and I can't figure out why they do this. So just wanted to verify that I'm reading this correctly.

[Aji Damarjati]

New Volvo's D17A motors datasheet

D17A600 EU6SCR : https://stpi.it.volvo.com/STPIFiles/Vol ... 235145.pdf
D17A700 EU6SCR : https://stpi.it.volvo.com/STPIFiles/Vol ... 235146.pdf
D17A780 EU6SCR : https://stpi.it.volvo.com/STPIFiles/Vol ... 235137.pdf

[galimim]

Does anyone have ratings for the new Detroit DD13 engines?

[al_batros]

A very handy Conversion Table I just found at the back of an MTU (Rail Powertrain) document:


Should be helping you out in all the conversions, hp-kw-nm-gal-mile-km... you name it.
Print it out and keep it under your pillow

Original source: https://www.mtu-solutions.com/content/d ... e-rail.pdf (page 35 of 36)

[rookie_one]

I also found this document, a complete range of Scania gearbox from 2005.

Missed getting that document, if you can send it back to add to the archive.

On the side of Volvo, I added the newer PDF files for both engines and transmissions before I thought about checking back that thread, but thanks for the gesture, very appreciated

@galimim as usual, unless we get someone that have some friends at a dealership, we won't have those

[Aji Damarjati]

@rookie_one
https://drive.google.com/file/d/1CZRwNE ... uu91t/view Here you go bud, i've restored it.

[rookie_one]

And in the archive it goes!

Thanks!

[Aji Damarjati]

I have another batch of technical data from late 90's to early '00 by Caterpillar!

Caterpillar 3406E (Individual PDF File for each rating from 350 hp to 600 hp) There is 14.6 liter 3406E (Which becomes C-15 6NZ) and 15.8 liter 3406E (Which become C-16 7CZ)
https://drive.google.com/drive/folders/ ... sp=sharing

Caterpillar C-10
https://drive.google.com/drive/folders/ ... sp=sharing

Caterpillar C-12
https://drive.google.com/drive/folders/ ... sp=sharing

Caterpillar C-15 and C-16 Pre Emission / Pre-ACERT
https://drive.google.com/drive/folders/ ... sp=sharing

Feel free to dig in!
