Here, what I found on internet... https://www.youtube.com/watch?v=-lXaKash1zA

How to create own road_template in blender for ETS2 (text version):

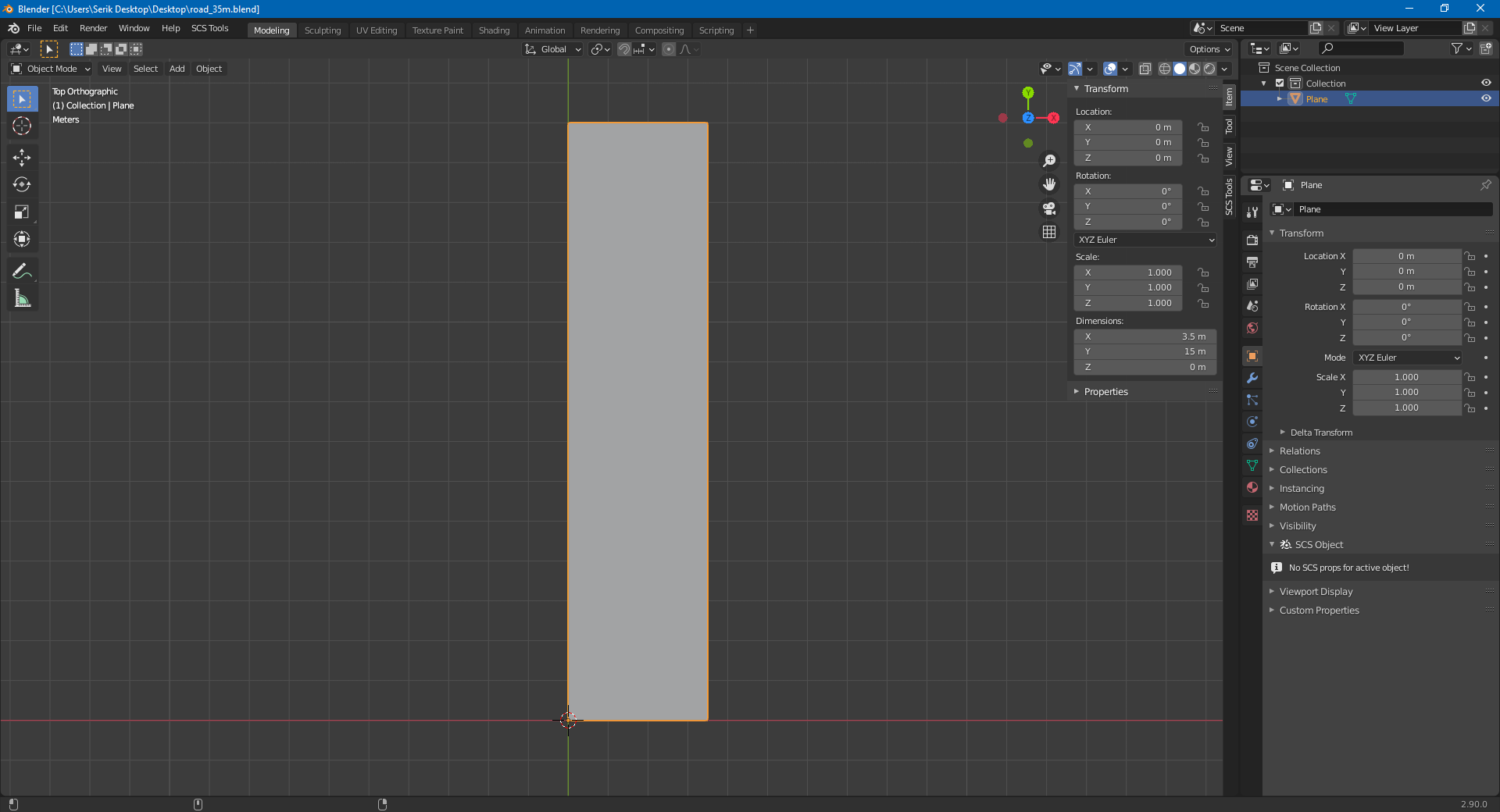

• Create plain [ external image ]
  - Set size to Y=15m, X=your width

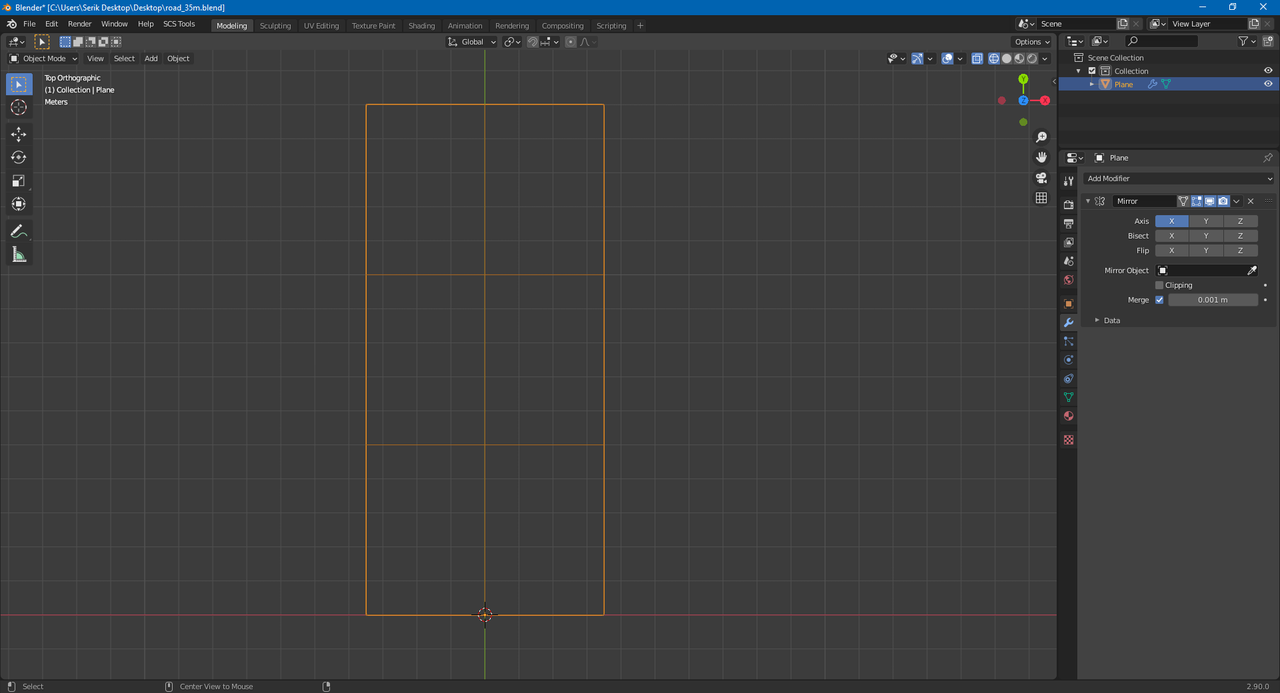

• Subdivide to 3 edges [ external image ]
  - also added a "mirror" modificator

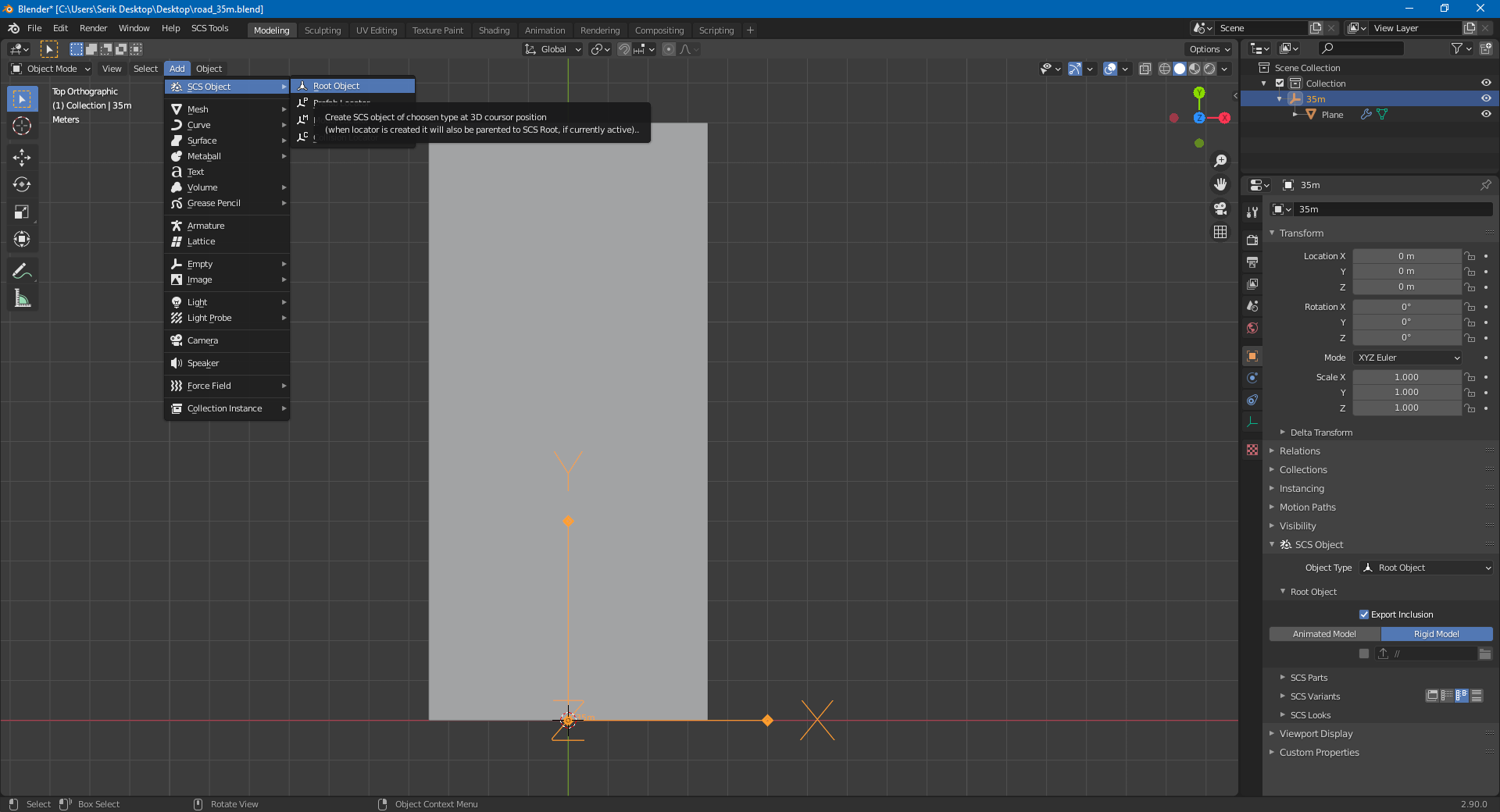

• Add root_object [ external image ]
  - rename it

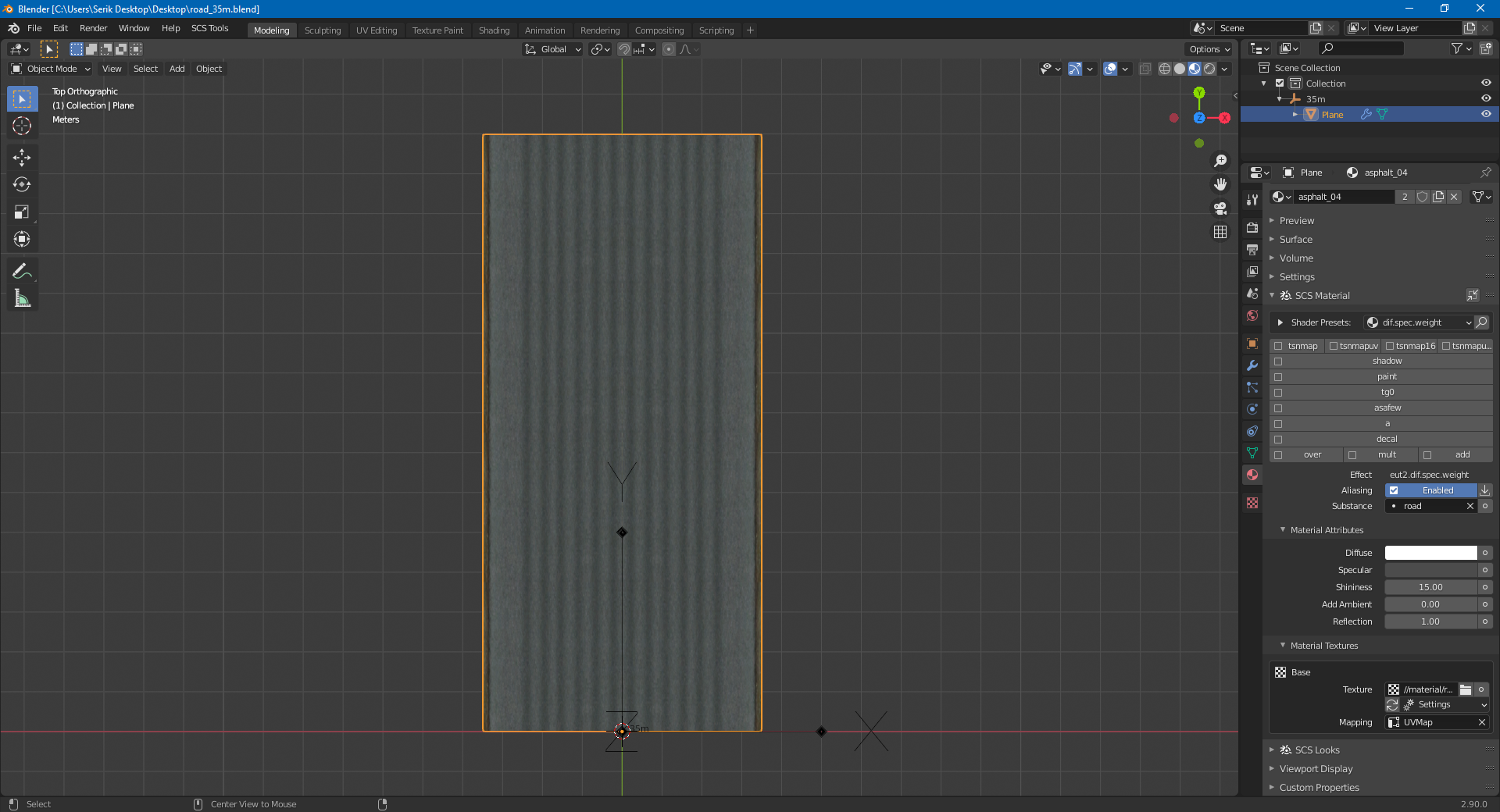

• Add material [ external image ]
  - follow this rules
  - Shader Presets: dif.spec.weight
  - Substance: road
  - add SCS Looks (i'm using existing materials... for totally new material hope it's not neccesary)

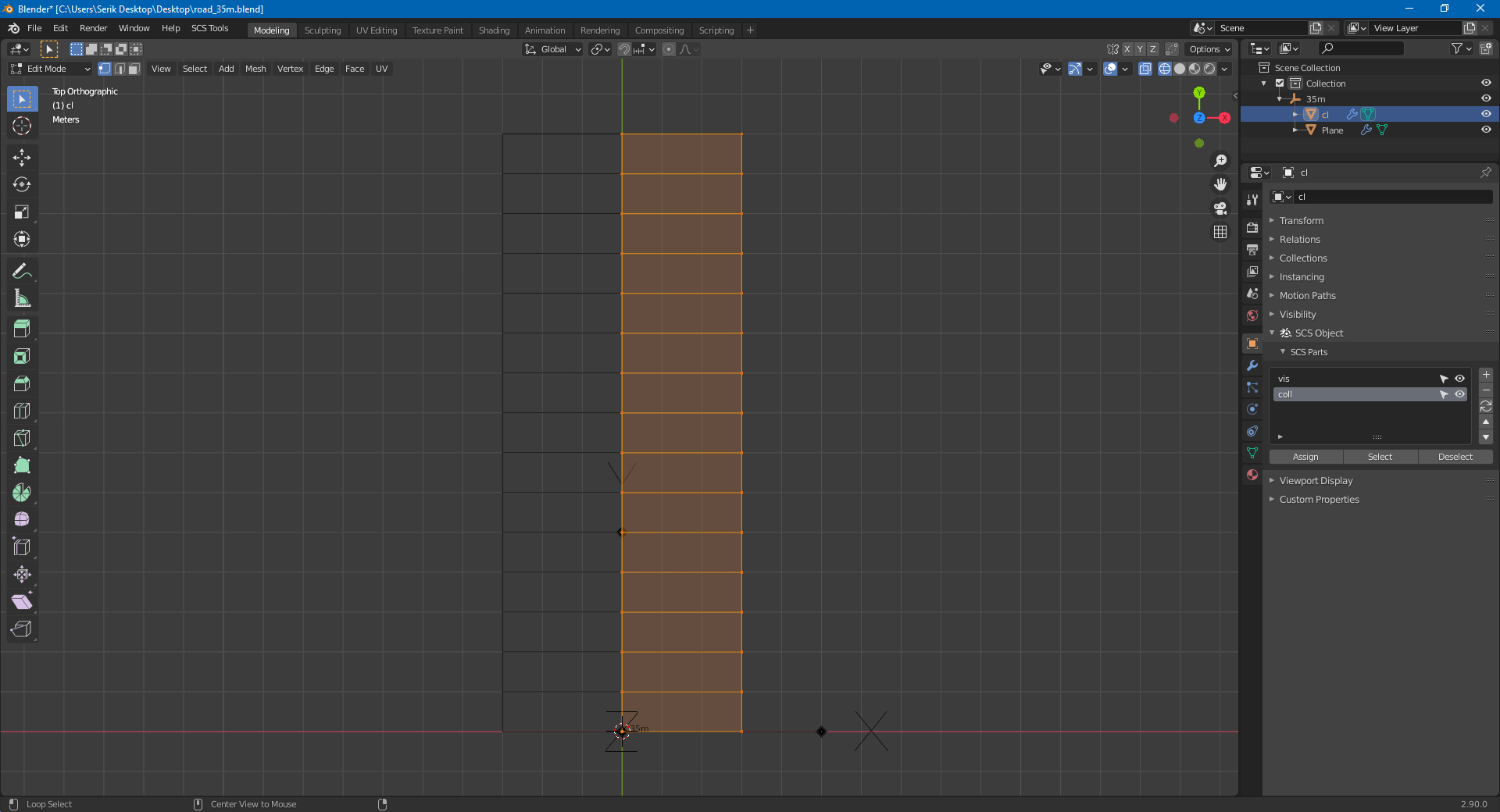

• Adding collision [ external image ]
  - Adding atributes vis, coll
  - Duplicate plane and assign to "coll" (i also rename it to to avoid confusion)
  - subdivide to 4 more edges

• Apply modifier to all meshes

• Export & Pack

[all_zer]

Question... after i exported it and converted succesfully, how to add curbs?

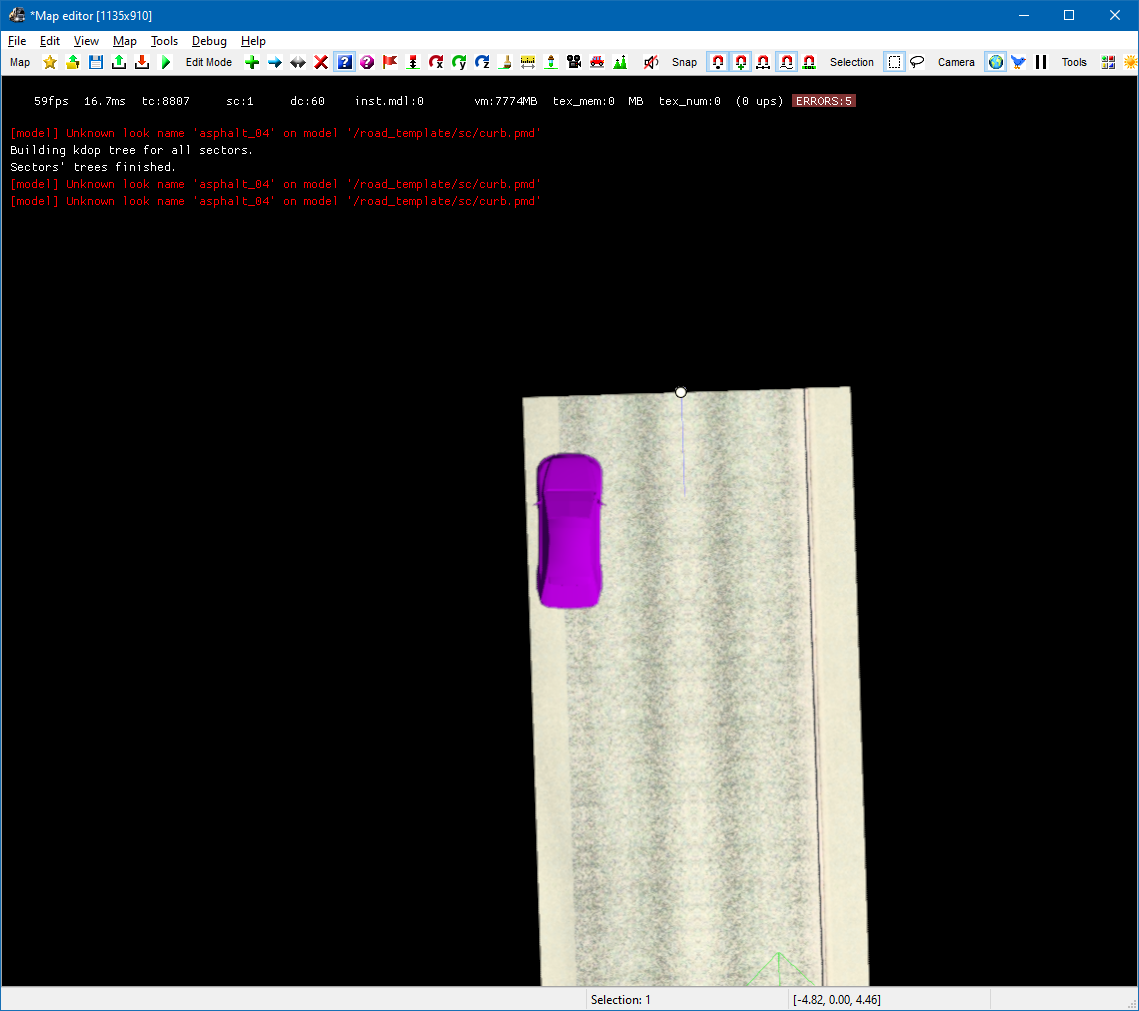

i not added eny description in deff, and have this error [ external image ]

is it only to add some changes to def file? or remodelling road look variant in blender again?

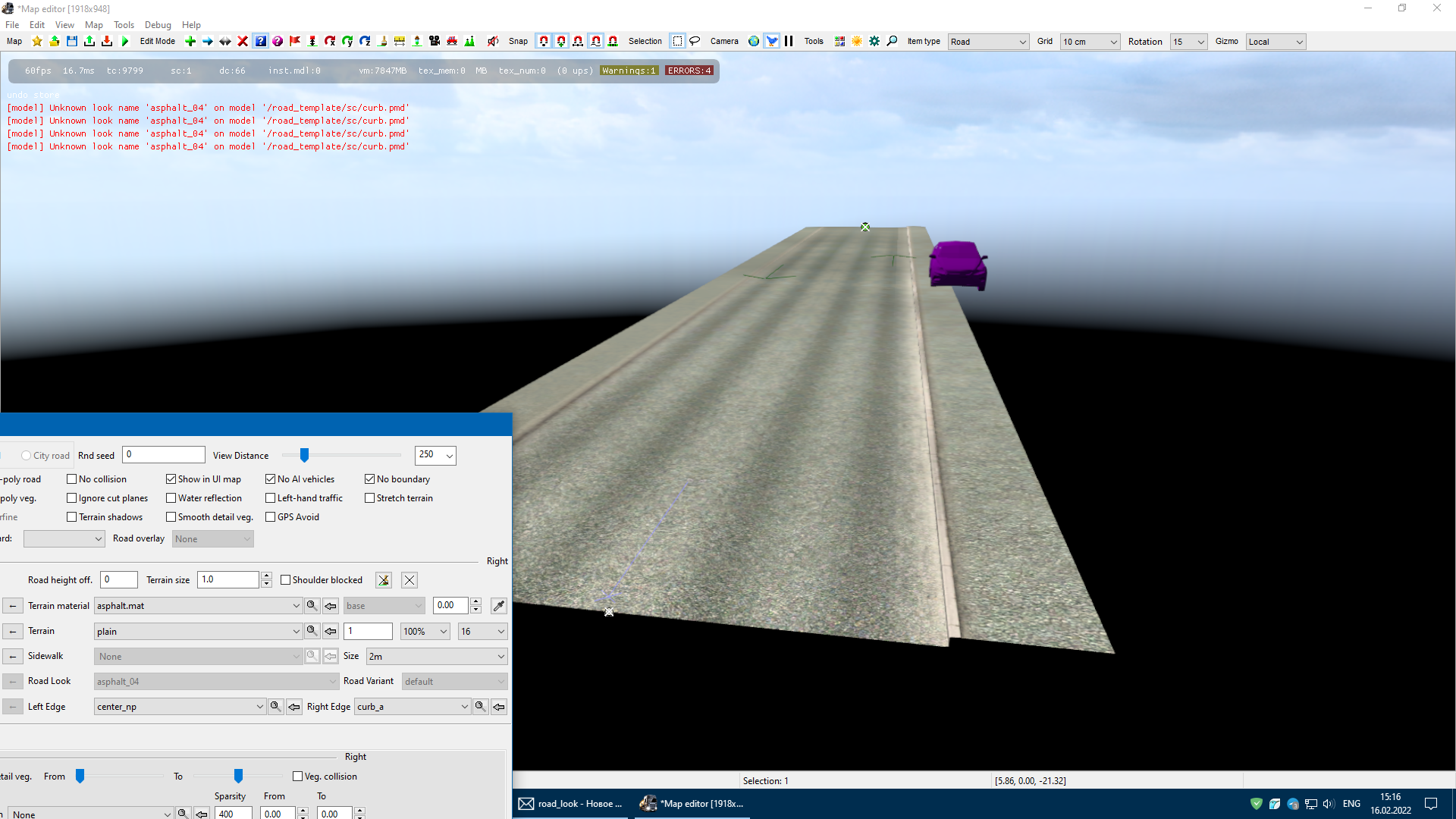

Because, i'm tryuing to add curb_a. and still have the same error: [ external image ]

Code: Select all

[model] Unknown look name 'asphalt_04' on model '/road_template/sc/curb.pmd'
